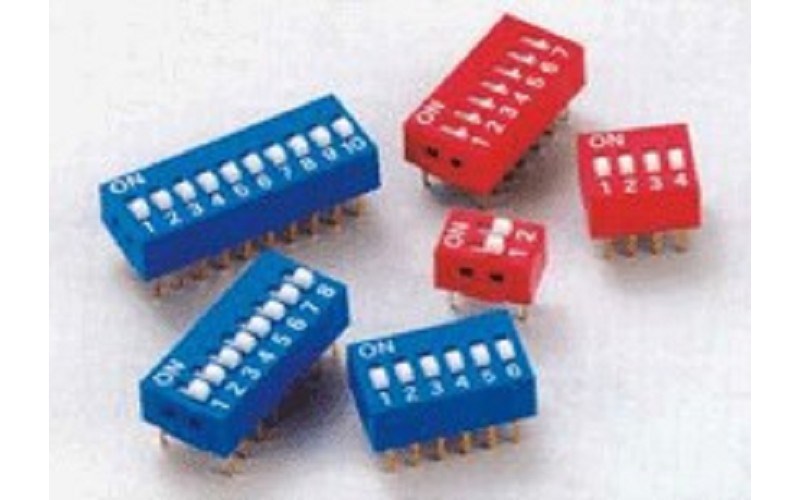

DSIC Series-Slide Type | DIP Switch | 指撥開關
FEATURES / INDIVIDUAL SPEC
| • |
All materials are UL94V-0 grade, high temperature resistancd plastic. |
| • |
Twin contact design to ensure stable contact. |
| • |
Gold-plated contact to ensure low contact resistance. |
| NO. OF POS |
DIM A |
| 2 |
6.08(0.239) |
| 3 |
8.92(0.351) |
| 4 |
11.16(0.439) |
| 5 |
13.70(0.539) |
| 6 |
16.24(0.639) |
| 7 |
19.08(0.751) |
| 8 |
21.32(0.839) |
| 9 |
24.16(0.951) |
| 10 |
26.40(1.039) |
| 12 |
31.48(1.239) |
| Contact Rating : |
Switching - 25mA at DC24V
Non-Switching - 100mA at DC50V |
| Contact Resistance : |
Initial - 50mΩ Max
After Life - 100mΩ Max |
| Insulation Resistance : |
1000mΩ Min, 60 seconds at DC500V |
| Dielectric Strength : |
AC500V for 60 seconds |
| Swith Capacitance : |
5pF Max at 1MHz |
| Operation Temperature : |
-20℃ to +85℃ |
| Storage Temperature : |
-40℃ to +85℃ |
| ITEM |
Description |
| 1 |
Actuator |
| 2 |
Cover |
| 3 |
Base |
| 4 |
Terminal Contact |
| 5 |
Potting |
| ITEM |
Materials |
Treatment |
| 1 |
UL94V-0 PBT |
White |
| 2 |
UL94V-0 PBT |
Blue, Red, Black |
| 3 |
UL94V-0 PBT |
Black |
| 4 |
Phosphor bronze |
Gold plating |
| 5 |
Epoxy |
Black |
|
|
|
|
|
|
