DSHP Series | DIP Switch | 指撥開關
FEATURES / INDIVIDUAL SPEC
| • |

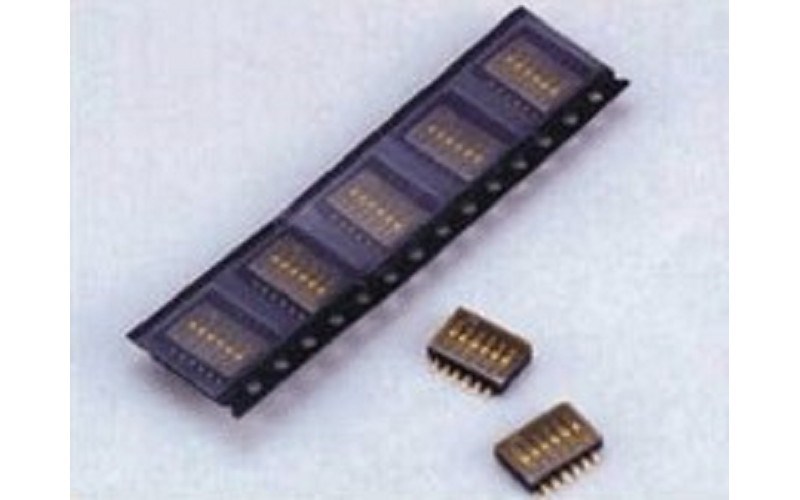

Hyper-miniature DIP Switch, surfacd mount device base on 1.27mm pitch. |
| • |
Lowest contact resistance less than 50m. |
| • |
Twin points and gold-plated contact, reliable design. |
| • |
All materials are UL94V-0 grade, high temperature resistancd plastic. |
| Packing : |
All DIP Switches Are Slipped In Standard IC Tubes Or Reel Package With All Poles In The "OFF". |
| NO. OF POS |
DIM A |
| 2 |
3.68(0.145) |
| 4 |
6.22(0.245) |
| 6 |
8.76(0.345) |
| 8 |
11.30(0.445) |
| 10 |
13.84(0.545) |
| 12 |
16.38(0.645) |
| Mechanical Life : |
2000 operations cycles per switch |
| Operation Force : |
600gf Max |
| Operation Temperature : |
-20℃ to +70℃ |
| Storage Temperature : |
-40℃ to +85℃ |
| ITEM |
Description |
| 1 |
Actuator |
| 2 |
Cover |
| 3 |
Base |
| 4 |
Contact |
| 5 |
Terminal |
| ITEM |
Materials |
Treatment |
| 1 |
UL94V-0 Nylon |
Molded white |
| 2 |
UL94V-0 Nylon |
Molded black |
| 3 |
UL94V-0 Nylon |
Molded black |
| 4 |
Beryllium Copper |
Gold plating |
| 5 |
Brass |
Gold plating |
|
|
|
|
OUTLINE DRAWING
