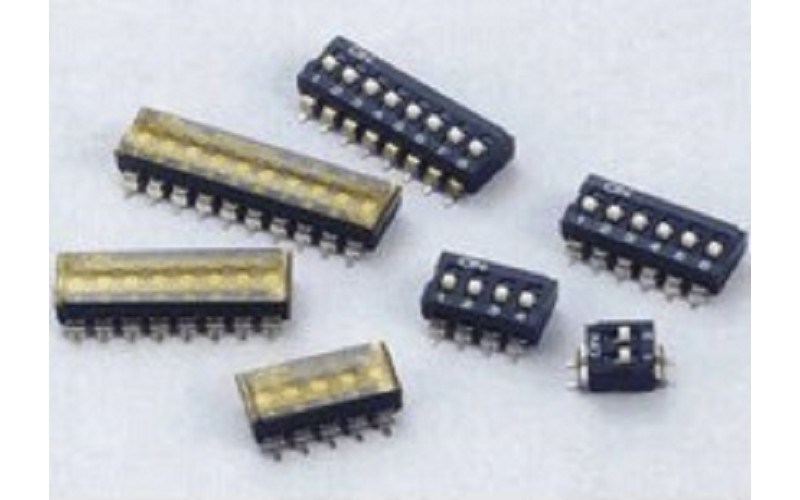

DSIC Series-SMD DIP Switch | 指撥開關
FEATURES / INDIVIDUAL SPEC
| • |
All materials are UL94V-0 grade, high temperature resistancd plastic. |
| • |
Twin contact design to ensure stable contact. |
| • |
Gold-plated contact to ensure low contact resistance. |
| NO. OF POS |
DIM A |
| 2 |
6.02(0.237) |
| 3 |
8.56(0.337) |
| 4 |
11.1(0.437) |
| 5 |
13.64(0.537) |
| 6 |
16.18(0.637) |
| 7 |
18.72(0.737) |
| 8 |
21.26(0.837) |
| 9 |
23.8(0.937) |
| 10 |
26.34(1.037) |
| 12 |
31.42(1.237) |
| Contact Rating : |
Switching - 25mA at DC24V
Non-Switching - 100mA at DC50V |
| Contact Resistance : |
Initial - 50mΩ Max
After Life - 100mΩ Max |
| Insulation Resistance : |
1000mΩ Min, 60 seconds at DC500V |
| Dielectric Strength : |
AC500V for 60 seconds |
| Swith Capacitance : |
5pF Max at 1MHz |
| Operation Temperature : |
-20℃ to +85℃ |
| Storage Temperature : |
-40℃ to +85℃ |
| ITEM |
Description |
| 1 |
Actuator |
| 2 |
Cover |
| 3 |
Base |
| 4 |
Contact |
| 5 |
Terminal |
| ITEM |
Materials |
Treatment |
| 1 |
UL94V-0 Nylon |
Molded white |
| 2 |
UL94V-0 Nylon |
Molded black |
| 3 |
UL94V-0 Nylon |
Molded black |
| 4 |
Beryllium Copper |
Gold plating
at contact area |
| 5 |
Brass |
Gold plating
at contact area |
|
|
|
|
|
OUTLINE DRAWING
