HSS 2245

分享到

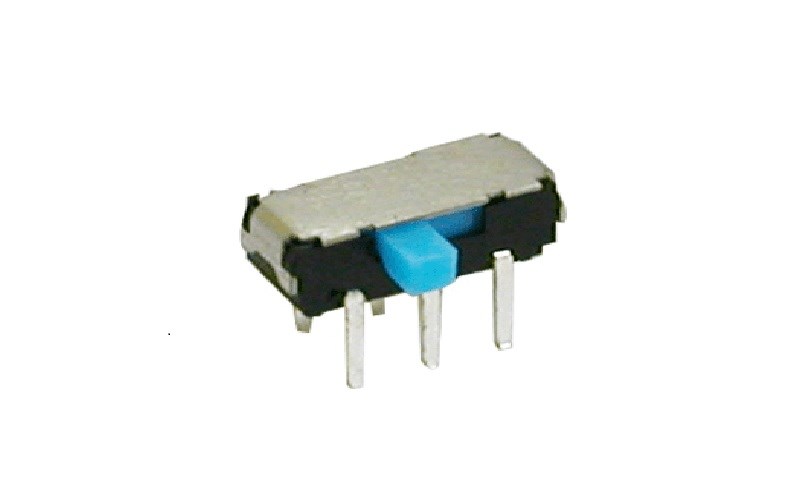

        HSS 2245 | Slide Switch | 滑動開關

       FEATURES / INDIVIDUAL SPEC



1. Rating :  DC6V 300mA
2. Circuit :  2C-2P
3. Travel :  2.0mm
4. Operating Force :  250±150gf
5. Contact Resistance :  70mΩ Max
6. Life :  10,000 Cycles Min

Model No. "L"
HSS 2245 2.0
HSS 2245A 4.0



        OUTLINE DRAWING
