HSS 1235

分享到

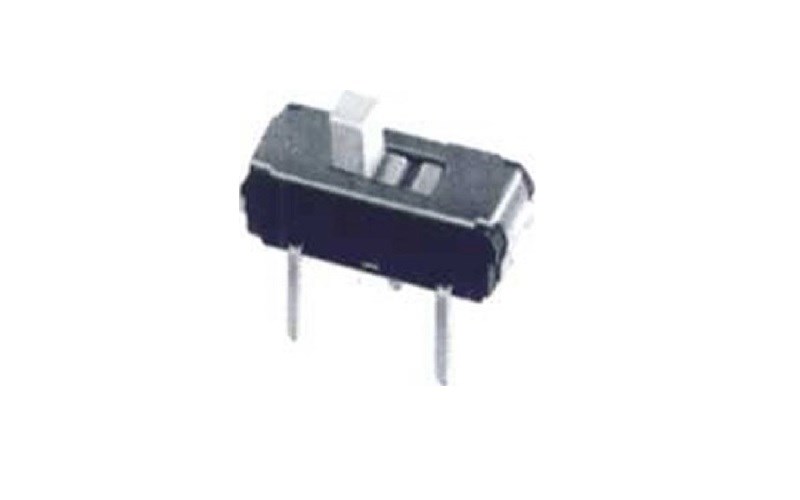

        HSS 1235 | Slide Switch | 滑動開關

       FEATURES / INDIVIDUAL SPEC

1. Rating :  DC6V 300mA
2. Circuit :  1C-2P
3. Travel :  2.0mm
4. Operating Force :  250±150gf
5. Contact Resistance :  70mΩ Max
6. Life :  10,000 Cycles Min

Model No. Knob(L)
HTS 1235 2.0
HTS 1235A 4.0



        OUTLINE DRAWING
