HTS 6265A

分享到

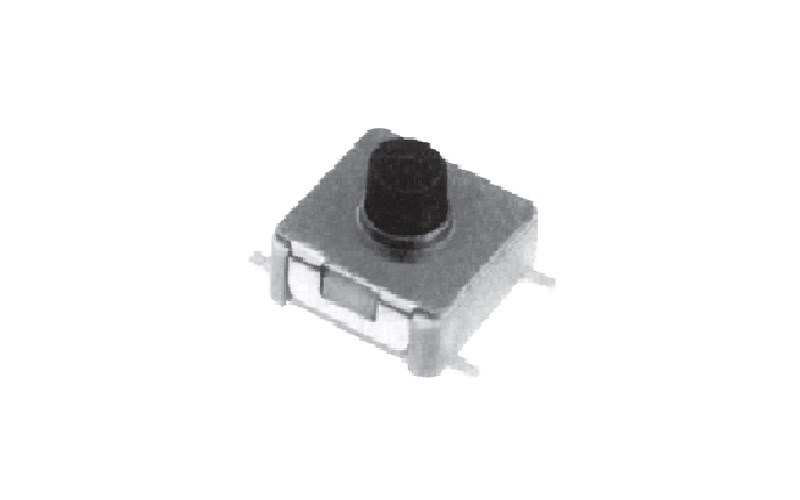

        HTS 6265A | Tact Switch | 輕觸開關

       FEATURES / INDIVIDUAL SPEC

1. Rating :  DC30V 20mA
2. Travel :  1st - 0.3±0.1mm
2nd - 0.55±0.15mm
3. Operating Force :  1st - 100±40gf
2nd - 250±80gf
4. Contact Resistance :  200mΩ Max
5. Life :  10,000 Cycles Min



       OUTLINE DRAWING
