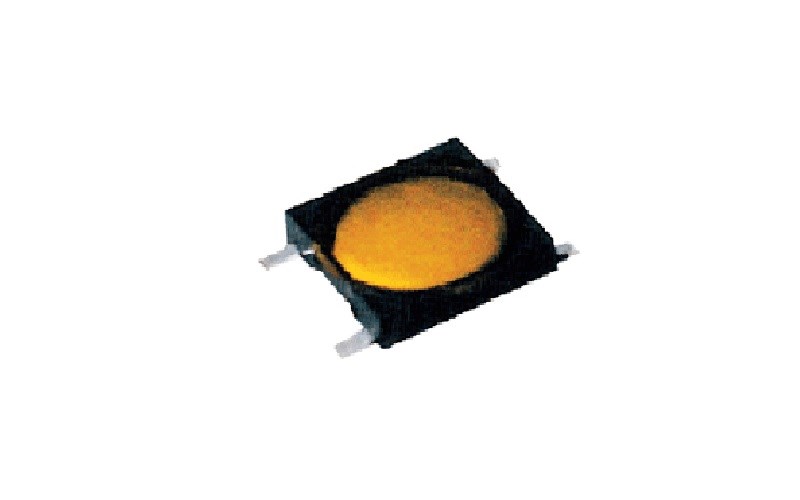

HTS 5597S

分享到

        HTS 5597S | Tact Switch | 輕觸開關

       FEATURES / INDIVIDUAL SPEC






1. Rating :  DC12V 50mA
2. Travel :  0.25+0.1/-0.2mm
3. Operating Force :  130, 160 or 250±50gf
4. Contact Resistance :  100mΩ Max
5. Life :  100,000 Cycles Min





       OUTLINE DRAWING
