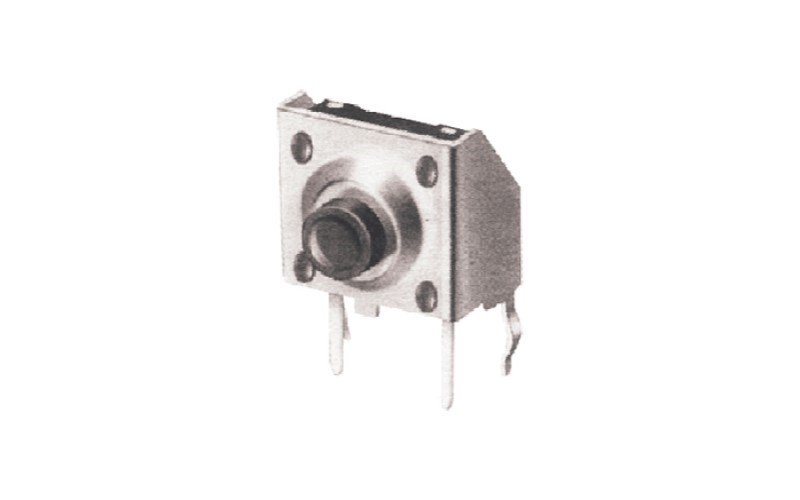

HTS 7272V | Tact Switch | 輕觸開關

       FEATURES / INDIVIDUAL SPEC

1. Contact : Mechanical Contact
2. Rating : DC12V 50mA
3. Travel : 0.3±0.1mm
4. Operating Force : 200±30gf
5. Contact Resistance : 100mΩ Max
6. Life : 100,000 Cycles Min
7. Ultrasonic cleaning is possible
    after auto-dipping
8. Drip-proof dust-proof structure

       OUTLINE DRAWING
