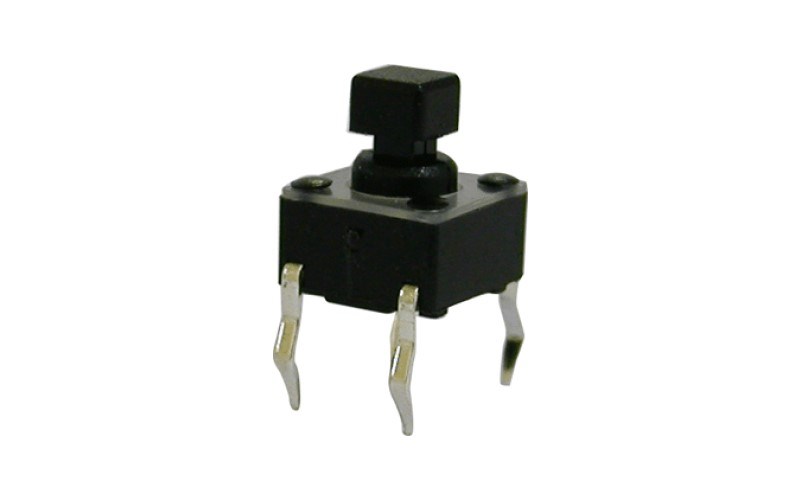

HTS 6601T | Tact Switch | 輕觸開關

       FEATURES / INDIVIDUAL SPEC

1. Rating :     DC12V 50mA
2. Travel :     0.25±0.1mm
3. Operating Force :     100, 130, 160 or 250±50gf
4. Contact Resistance :     100mΩ Max
5. Life :     100,000 Cycles Min
6. Knob Size(A) :     □2.4 & □2.8


       OUTLINE DRAWING
